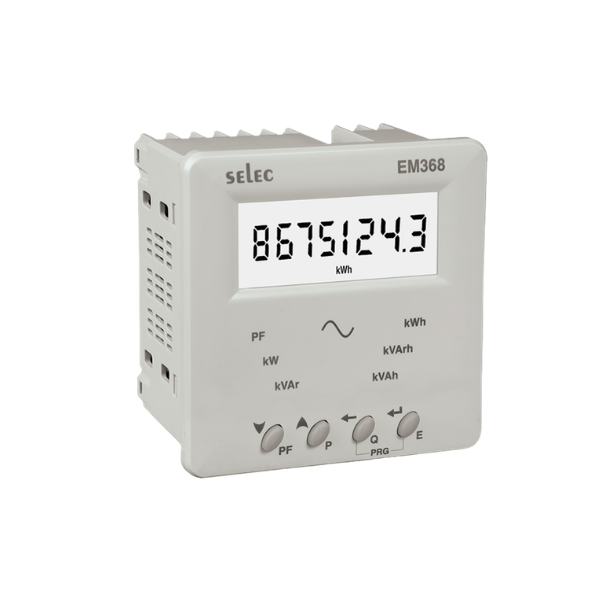

Selec UL & CE Certified 8 Digit LCD Energy meter (EM368-C)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- LCD Display with 1 row of 8 digits
- Password protection for Energy reset
- Class 1 for Active energy
- Memory retention
- Pulse output, RS485 and Modbus RTU communication
Brief Specifications
| Display Type | LCD with Backlight |
| Display Configuration | 8 Digits |
| Electrical Connection | 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W |
| Type of Output | Pulse Output |
| Communication Protocol | RS485 and MODBUS RTU |
| Features | Password Protection, Memory Retention, Power (Active / Reactive), Energy (Active / Reactive / Apparent) |
| CT Primary | 1/5A to 10kA (Programmable for Any Value) |
| CT Secondary | 1 / 5A (External CT Must be Connected for Current More Than 5A) |
| PT Primary | 100V to 500kV (Programmable for Any Value) |
| PT Secondary | 100 to 500V AC (L-L) (Programmable for Any Value) |
| Supply Voltage | 85 to 270V AC (45/65 Hz) |
| Mounting Type | Panel Mount |
| Size | 96 x 96mm |
| Certification | CE, UL Listed |
