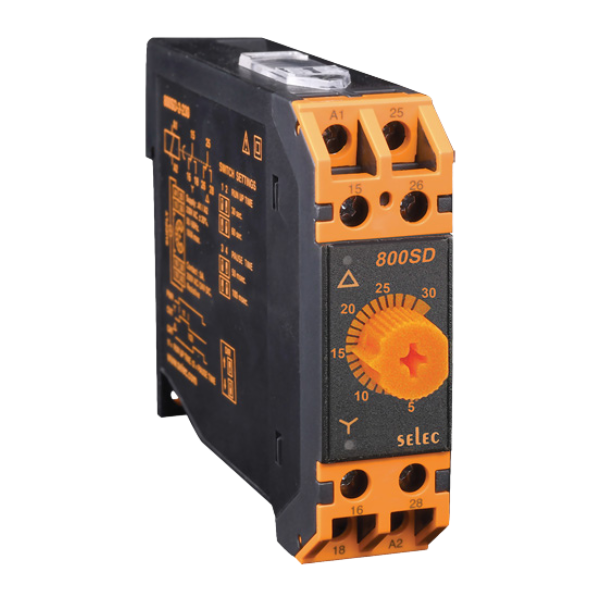

Selec Star Delta Function Timer (800SD-2-230VAC)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Star delta
- 2 Time ranges
- LED indications : Star Relay ON, Delta Relay ON
- Supply voltage: 110V AC / 230V AC/ 415V AC
Brief Specifications
| Operating Modes | Star-Delta |
| Range | Run Time Range: 30 / 60sec, Change Over Time: 50 /100msec ( user selectable via DIP switches) |
| Accuracy | Setting: ±5% of Full Scale, Repeat: ±0.5% or 50msec |
| Relay Contact | 1 C/O Each For Star And Delta |
| Contact Rating | 5A @ 250V AC or 24V DC |
| Supply Voltage | 230V AC / 110V AC / 230 to 415V AC |
| Size | 22.5mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE |
