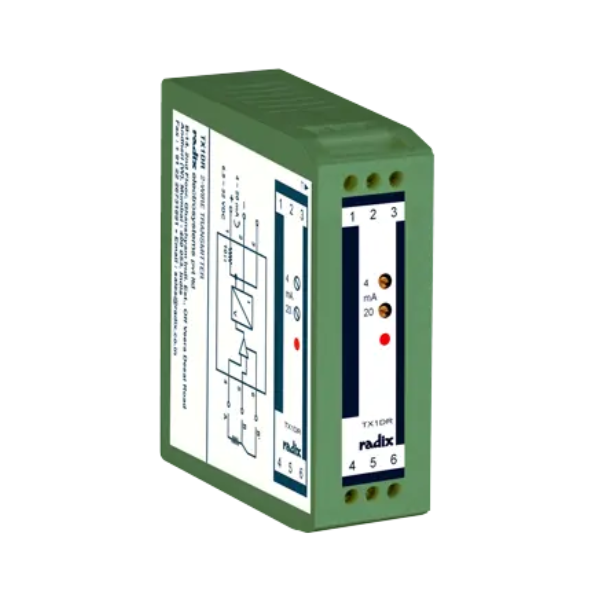

Selec Radix 2 Wire Temperature Transmitter (TX1DR)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Input : RTD Pt100, Pt50, Pt200, Pt500, Pt1000
- 2-wire, 4-20mA analog output
- Accuracy : ±0.1% of span
- Loop supply : 6.5 to 32 VDC
- 8 SPAN ranges, 25 to 600°C / 45 to 1080° F
- 4 ZERO ranges, -100 to +70°C / -148 to +158°F
- Upscale / downscale selectable sensor break detection
| Sensor Type | RTD |
| Model Name/Number | TX1DR |
| Brand | Radix |
| Protection | IP20 |
| Mounting Type | DIN Rail Mounting |
| Material | ABS Plastic |
| Dimensions | 25x80x85mm (WxHxD) |
| Output | 4mA |
