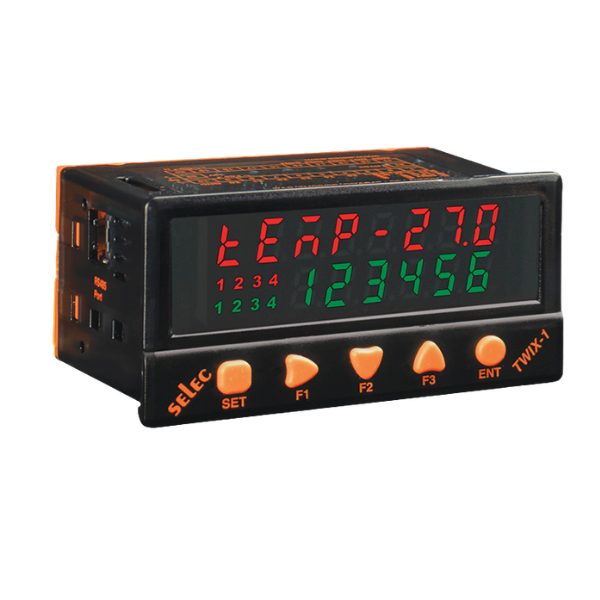

Selec PLC WITH TEMP AI AND RELAY OP (TWIX-1-230V)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
- 6 Digital Inputs, 4 Relay Outputs.
- 1 Channel Fast Input upto 5kHz.
- 1 Channel Analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
- Supply voltage : 90 to 270 VAC / 18 to 30 VDC
- RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.
Brief Specifications
| Display Type | (4 + 4) Red + 6 Green Digits LED Display , 4 Red + 4 Green LED's |
| Size | 48 x 96mm |
| Digital Inputs | 6 (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 1 Channel (TC / RTD) |
| Digital Outputs | 4 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC |
| Analog Outputs | NA |
| RTC With Time Switch Function | No |
| Code Memory | 112KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
