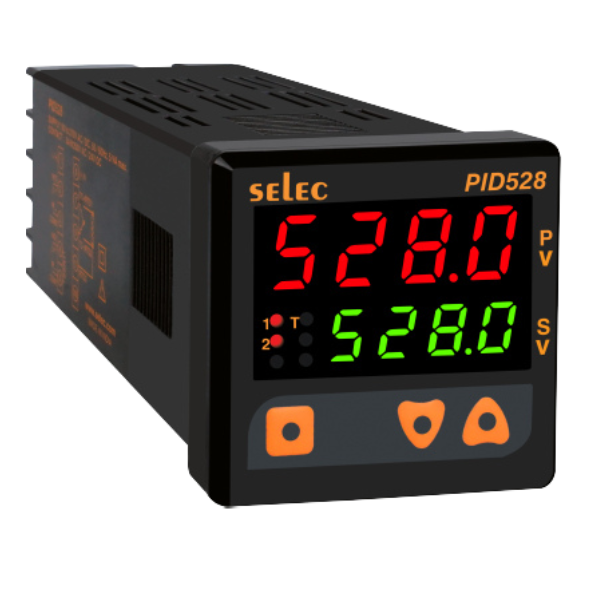

Selec PID, TC/RTD Input, 2 Relay output (PID528-1)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 4 digit Dual bright display Advance PID temperature controller
- (TC: J, K, T, R, S/ RTD: PT100) sensor input
- ON-OFF/Auto tune PID control
- Dual set point
- 5A relay control output
- Auxiliary 5A Relay output
- 48 mm x 48 mm size
- Panel mount
- 90 to 270V AC/DC supply voltage.
- CE, RoHS certified
Brief Specifications
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4 + 4 Digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | 0.1/1° for TC / RTD (fixed 1° for R and S TC) |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | RELAY |
| Auxiliary Output | RELAY |
| Control Mode | Auto Tune PID / ON-OFF |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE |
