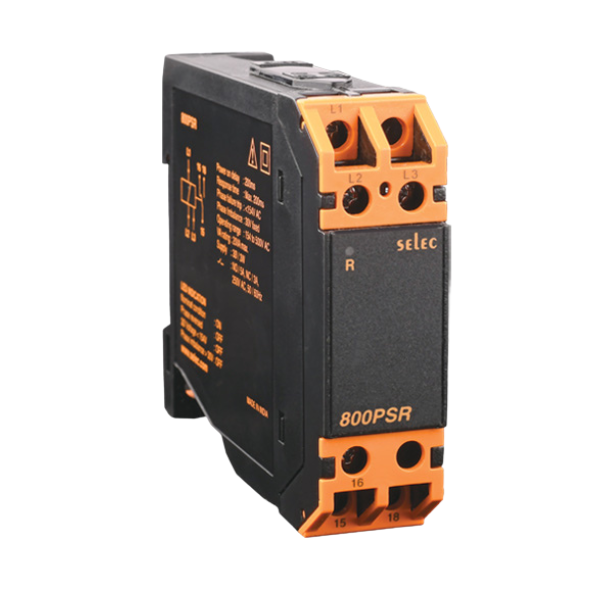

Selec Phase sequence relay, Din rail mount (800PSR)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Monitors Phase Sequence, Phase Failure & Phase Asymmetry
- 3P - 3W wiring configuration
- Relay output: 1 C/O SPDT
- Supply voltage: 154 - 500V AC (L-L)
- Mounting : Din Rail Mount
Brief Specifications
| Measuring Parameter | Phase Sequence, Phase Failure, Phase Asymmetry |
| Electrical Connection | 3P - 3W |
| Time Ranges | Power On Delay: 200msec |
| Accuracy | Trip Accuracy : ± 10V |
| Output Contact | 1 C/O ( SPDT ) |
| Output Rating | NC: 3A @ 250V AC , NO: 5A @ 250V AC |
| Operating Voltage | 154 To 500V AC (L - L) |
| Size | 22.5mm |
| Mounting Type | DIN Rail Mount |
