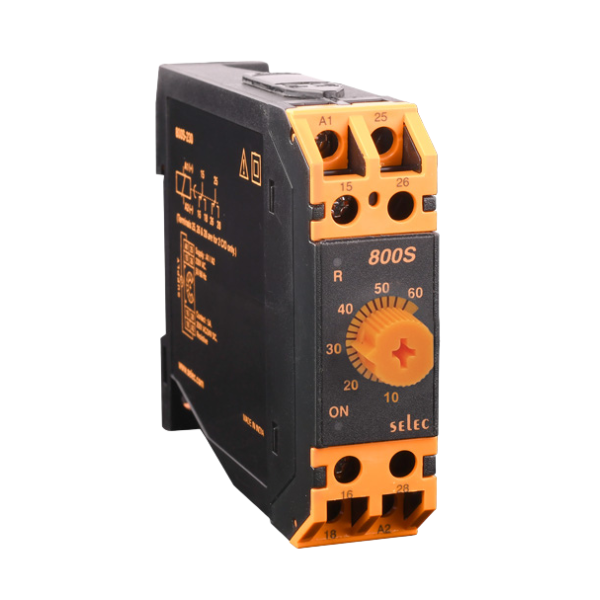

Selec On delay, Single Time Range (800S-1-ON-60S-230)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- LED indications : Power ON, Relay ON
- Low cost, Single function
- Finger safe terminals
Brief Specifications
| Operating Modes | ON delay |
| Range | 60 sec |
| Resolution | 6 sec |
| Accuracy | Setting: ± 5% Of Full Scale, Repeat: ± 0.5% Of 50ms (Whichever Is Greater) |
| Relay Contact | 1 C/O SPDT |
| Contact Rating | 5A @ 250V AC or 24V DC |
| Supply Voltage | 230V AC, 415V AC |
| Size | 22.5mm |
| Mounting Type | DIN Rail Mount |
