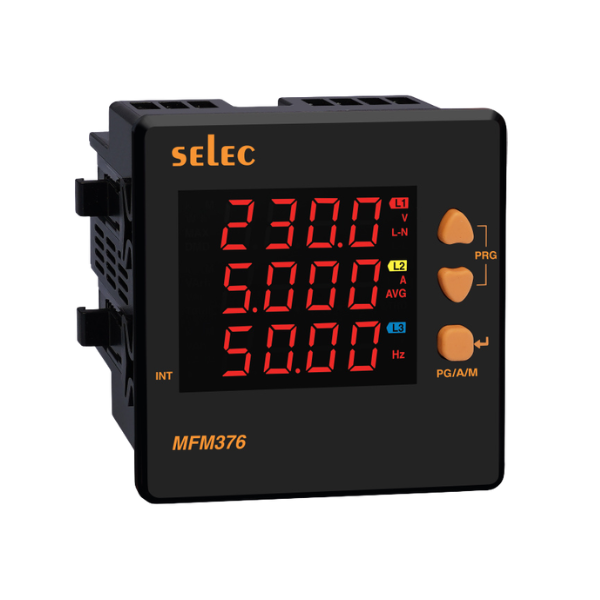

Selec LED Multifunction Meter (MFM-376-C)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems
- 11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
- Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±0.01% for PF, 1% for Power, Class 1 for Active, reactive & Apparent energy
- Max / Min power Demand measurement, Import / Export Energy measurement
- %THD upto 31st level, RS485 Communication MODBUS RTU (MFM376-C-CE)
- CE RoHS certified
Brief Specifications
| Display Type | 7 Segment LED Display |
| Display Configuration | 2 rows of 8 digits |
| Electrical Connection | 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W |
| Type of Output | Pulse Output |
| Features | Phase Angle Detection, (Max / Min) Demand Power, Run Hour, Auxiliary Interrupts |
| CT Primary | 1 / 5A to 10kA (Programmable for Any Value) |
| CT Secondary | 1 / 5A (Programmable) |
| PT Primary | 100V to 500kV (Programmable for Any Value) |
| PT Secondary | 100V to 500V AC (Programmable for Any Value) |
| Rated Input Current | Nominal 5A AC (Min – 20mA; Max – 6A) |
| Supply Voltage | 40V to 300V AC / DC (50/60Hz) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
