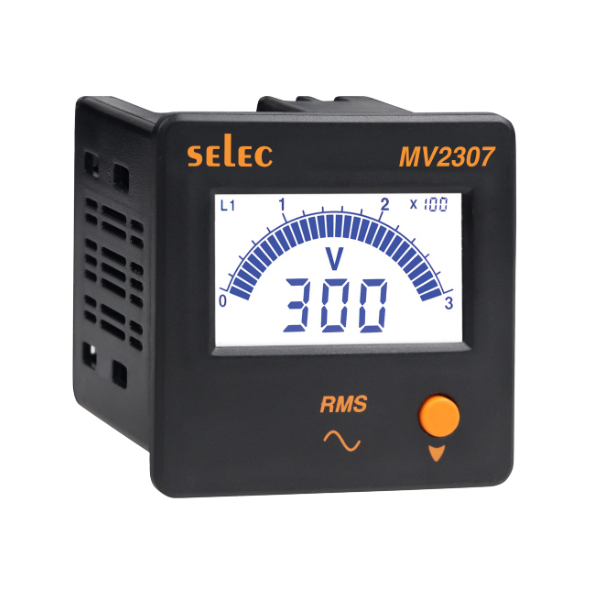

Selec LCD Voltmeter, 3Ø, 72x72mm (MV2307)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 3 phase 3 wire, 3 phase 4 wire
- 50 to 480V AC measurement
- Accuracy of ±0.5% of F.S.
- 3 digit LCD display with analog style bargraph
- Panel mount
- Supply voltage of 240V AC ±20% , 110V AC ±20%
Brief Specifications
| Display Type | LCD with Backlight and Analog Style Bargraph Indication |
| Display Configuration | 1 row of 3 digits |
| Electrical Connection | 3Ø – 4W, 3Ø -3W |
| Accuracy | ±0.5% of Full Scale Over Rated Operating Condition |
| Measuring Range | 50 - 480V AC (516V Max) |
| Supply Voltage | 240V AC ±20% , 110V AC ±20% |
| Size | 72 x 72mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS & UL |
