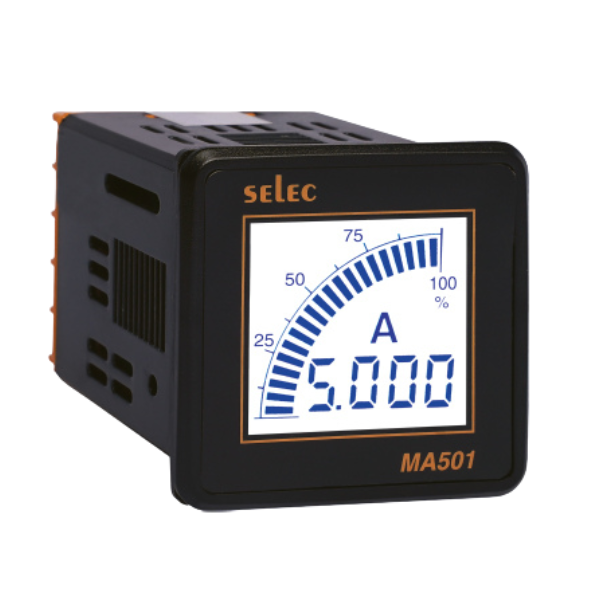

Selec LCD Ammeter, 1Ø, 48x48mm (MA501-230V-CE-RoHS)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 1 phase 2 wire systems
- Accuracy of ±0.5% of F.S.
- LCD display with bargraph
- 4 digits 7 segment
- Panel mount
- Supply voltage of 240V AC ±20% , 110V AC ±20%
Brief Specifications
| Display Type | LCD with Backlight and Analog Style Bargraph Indication |
| Display Configuration | 1 row of 4 digits |
| Electrical Connection | 1Ø - 2W |
| Accuracy | ±0.5% of Full Scale |
| CT Primary | 5 to 5000A ( Programmable in Steps ) |
| CT Secondary | 5A ( Fixed ) |
| Supply Voltage | 240V AC ±20% , 110V AC ±20% |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS & UL |
