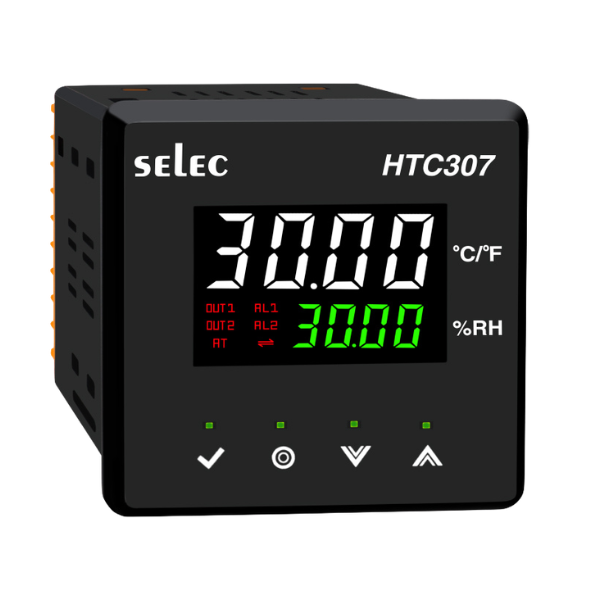

Selec Humidity + Temperature Controller (HTC307)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 4 digit dual display with RH input
- RH sensor enclosed with unit
- ON-OFF / Proportional Control for humidity
- 10A SPST relay control output
- 5A SPST relay alarm output
- 0% - 100% Humidity control range
- Capacitive touch keypad
- 4 digit LED display
- RTD(PT100) input for temperature
- ON-OFF/PID control for temperature
- Auto tune / Self tune PID
- 10A SPST Relay control output
- 5A SPST Relay Auxillary output
- CE certified
Brief Specifications
| Display Type | 4+4 digits, 7 Segment LED Dual Display |
| Type of Inputs | 5V RH (HS-A-100) sensor for Humidity, RTD (PT100) sensor for Temperature |
| Resolution | 0.1 / 1 for RH / RTD input |
| Accuracy | RTD: ±0.25% of span or 1° whichever is greater (20min of warm up time) Cold Junction calibration accuracy for RTD input 0.1% of F.S ± 1° C Humidity: ±3% for RH 10% to 80%, ±4% for below 10% or above 80%. |
| Output | Controls Output: 10A, 2 C/O SPST Auxillary Output: 5A, 2 C/O SPST |
| Set Point | 4 |
| Control Output | For Humidity: ON-OFF, P Control For Temperature:ON-OFF / PID control (ST, AT, ADT Tunning) |
| Feature | Load protection protocol, Low / High Alarm, Free RH sensor with unit |
| Special Mode | User selectable special modes, PID & proportional control for temperature & Humidity respectively along with ON/OFF control, auto/manual, soft start. |
| Supply Voltage | 90-270 VAC/ DC |
| Size | 96 x 96 mm |
| Mounting Type | Panel Mount |
| Certification | CE |
| Protection | IP65 frontal |
