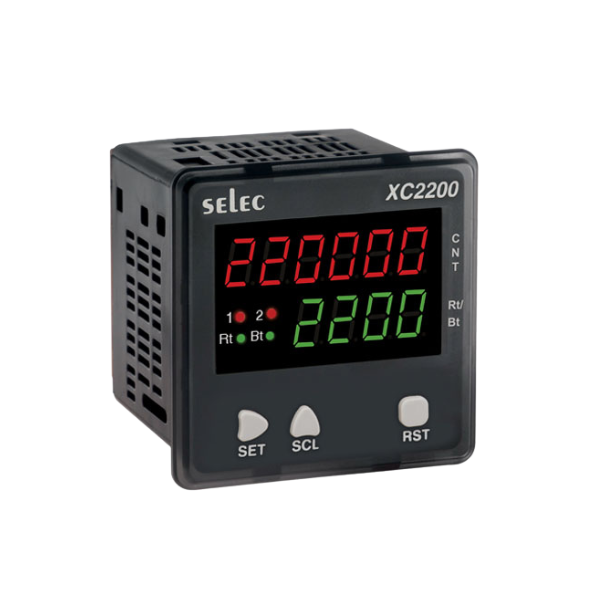

Selec DUAL DISPLAY, LED COUNTER + RATE INDICATOR (XC2200)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 6 digit preset counter, 4 digit rate indicator
- Led indications - relay1 & 2, Rate, Batch
- Dual setpoint, Programmable input scaling
- User configurable rate/batch
Brief Specifications
| Display Type | LED |
| Display Configuration | 6 Digits Counter, 4 Digits RPM Indicator |
| Relay Contact | 2 C/O DPDT |
| Output Rating | 5A @ 230V AC / 24V DC |
| Operating Modes | On Delay, Interval , Auto Reset, Time Pulse Repeat |
| Reset | Front (user selectable), Remote |
| Counting Direction | Up, Down |
| Features | Memory Retention, 2 Set Points, Programmable Input Scaling |
| Sensor type | NPN, PNP, Potential Free Contacts |
| Input Speed | a) 0 to 30Hz b) 0 to 5kHz |
| Supply Voltage | 90 to 270V AC / DC |
| Size | 72 x 72mm |
| Mounting Type | Panel mount |
| Certification | CE |
