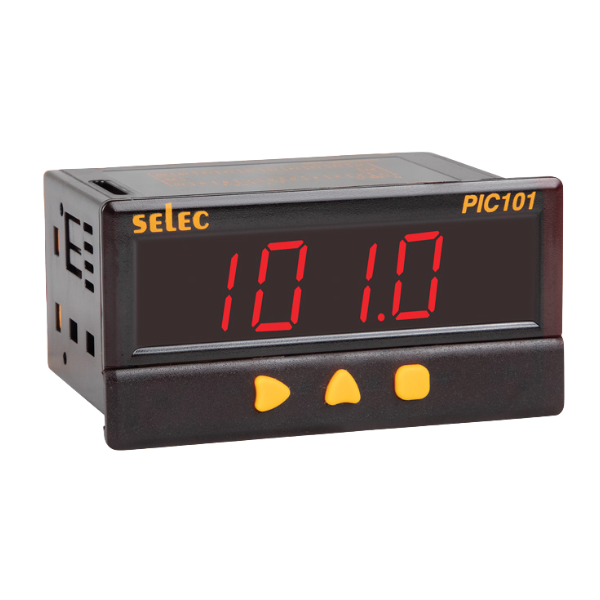

Selec Digital Process Indicator with TC/RTD Input (PIC101A-T-230)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 4 digit single display process indicator
- Universal input (TC: J, K, T, R, S/ RTD: PT100)
- Signal input: (-5 to 56mV, 0 to 10V DC, 0/4 to 20 mA DC)
- 24V DC @ 30mA sensor supply
- 48 mm x 96 mm size
- Panel mount
- 90 to 270V AC/DC supply voltage
Brief Specifications
| Display Type | 7 Segment LED, Single Display |
| Display Configuration | 4 digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | 1/0.1° |
| Accuracy | TC: ± 0.25% of F.S ± 1º R & S TC: ± 0.5% of F.S. ± 2 (20min of warm up time) RTD: ± 0.1% of F.S. ± 1º |
| Supply Voltage | 230V AC, ±20% |
| Size | 48 x 96mm |
| Mounting Type | Panel Mount |
