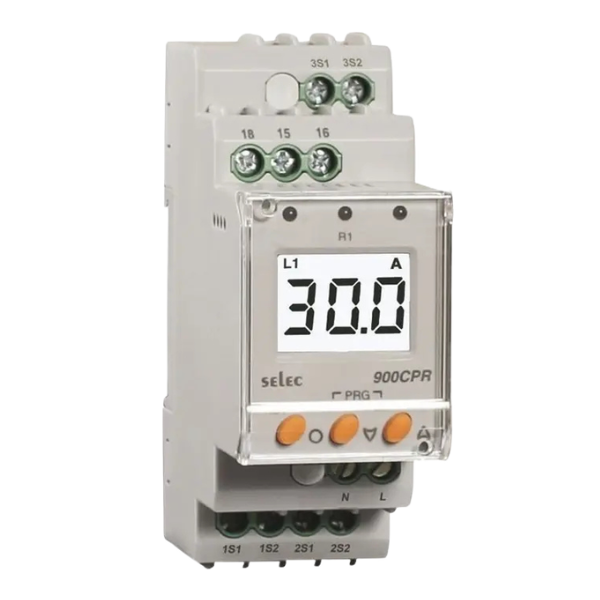

Selec Current monitoring relay (900CPR-3-1-BL-230V-CE)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The current monitoring relay 900CPR-3-1-BL-230V-CE from Selec for 1-phase and 3-phase systems monitors your system for under or overcurrent. The switching hysteresis and a possible time function can be easily set via the LCD display with backlight. For an alarm output, you have a NC or NO contact available. The monitoring relay is simply mounted on 35 mm DIN-rail. The proven terminal connection of the 900CPR-3-1-BL-230V-CE current monitoring relay provides for easy wiring in your system.
- Monitoring relay
- Features: Undercurrent/Overcurrent protection for 1 and 3-phase systems
- True RMS measurement
- Time functions: Power ON/Trip time/Recovery time delay (0.5-99,9/0-99.9 s)
- Additional features: Alarm display; Locking; Reset
- 3-digit LCD with backlight
- Adjustable switching hysteresis
- Alarm output: 1 x NO/NC
- Supply voltage: 230 V AC (± 15 %)
- Dimensions: 35 x 90 x 70.5 mm
- Mounting: 35 mm DIN-rail
- Terminal connection
