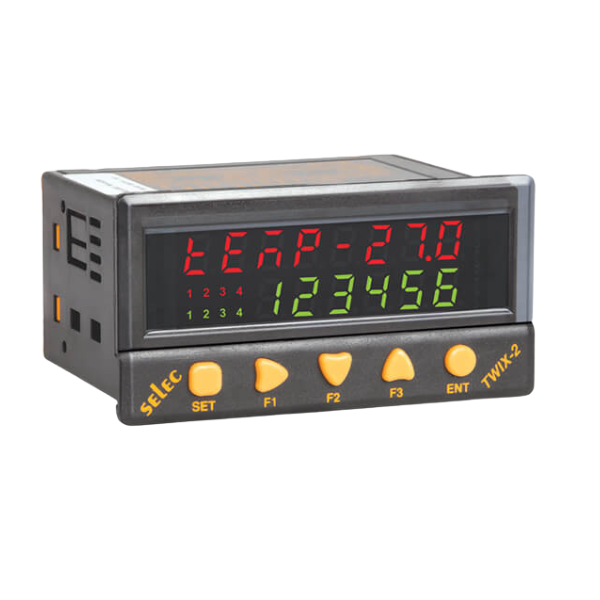

Selec COMPACT PLC ANALOG AND DIGITAL IO (TWIX-2-230V)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 4 Digits Green Display with 5 Keys.
- 6+2* Digital Inputs, 5 Relay Outputs
- 1 channel Fast Input upto 5kHz.
- 2 out of 8 Digital Inputs can be configured as 0-10V analog Inputs
- 6 channels of analog Inputs of 2 each channels of voltage (0-10VDC), Current (0-20mA) or TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD type 1 channel of Analog Output (0-10VDC) / (0-20mA).
- Supply Voltage: 90 to 270 VAC / 18 to 30 VDC
- 2 wire MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.
Brief Specifications
| Display Type | (4 + 4) Red + 6 Green Digits LED Display, 4 Red + 4 Green LED's |
| Size | 48 x 96mm |
| Digital Inputs | 6 + 2* (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 6* Channel (2 TC / RTD, 2 * (0-10V), 2 (0-20mA)) |
| Digital Outputs | 5 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC |
| Analog Outputs | 1 Channel (0-10V / 0-20mA) |
| RTC With Time Switch Function | No |
| Code Memory | 240KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
