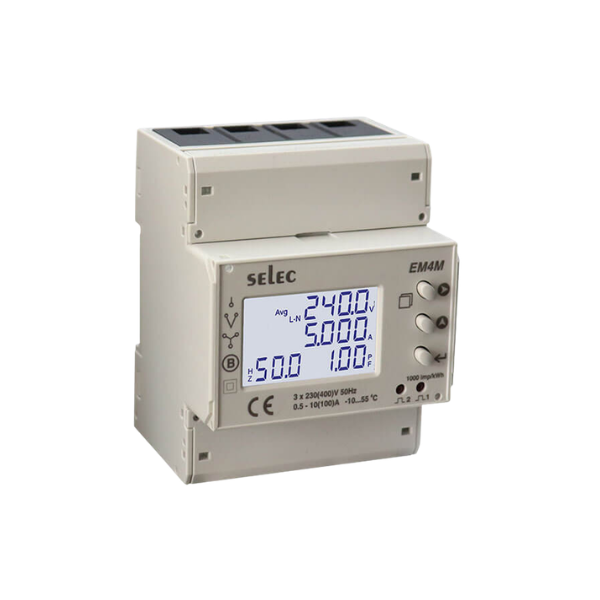

Selec CE certified, Three phase DIN RAIL Energy Meter (EM4M-3P-C-100A-CE)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Brief Specifications
| Display Type | LCD with Backlight |
| Display Configuration | 1 Row of 4 Digits, 2 Rows of 7 Digits |
| Electrical Connection | 1Ø - 2W, 3Ø - 3W, 3Ø - 4W |
| Type of Output | Two Pulse Outputs |
| Communication Protocol | RS485 and MODBUS RTU |
| Features | D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi - directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent), Max-Demand Power |
| Power Consumption | 4VA Max |
| Input Current Range | Ib: 10A (Min - 0.5A, Max - 100A) |
| Supply Voltage | 85 to 285V AC (L-N), 120 to 494V AC(L-L),45 to 65Hz (Self-Powered) |
| Mounting Type | Din Rail |
| Size | 70 x 90mm |
| Certification | CE |
