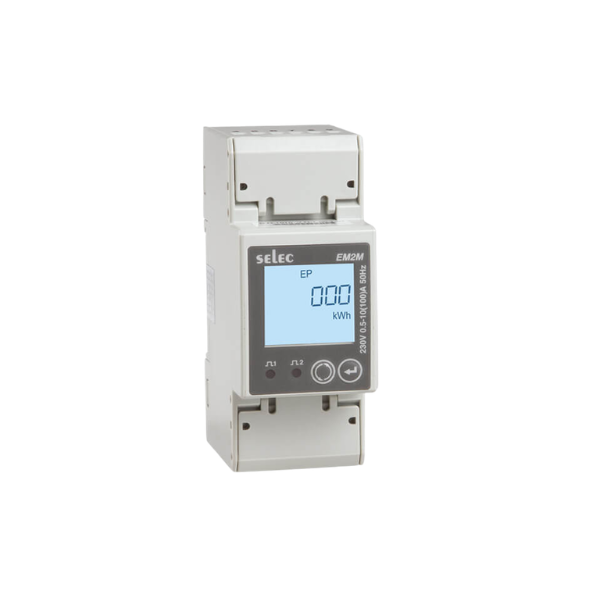

Selec CE certified, Single phase DIN RAIL Energy Meter (EM2M-1P-C-100A)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Compatible with 1 phase 2 wire system, Self-Supplied
- 176 to 276V AC measurement
- Direct current measurement up to 100A
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
- Two pulse outputs configurable for Import/Export Energy measurement
- RS485 Modbus communication, Mbus variant available
- CE, MID Certified
Brief Specifications
| Display Type | LCD with Backlight |
| Display Configuration | 7 Digits |
| Electrical Connection | 1Ø - 2W |
| Type of Output | Two Pulse Outputs |
| Communication Protocol | RS485 and MODBUS RTU |
| Features | Self Powered, 100A Direct Connection, Bi - directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent) |
| Power Consumption | 8VA Max |
| Input Current Range | 5A AC (Min - 10mA, Max - 100A) |
| Supply Voltage | 176 to 276V AC (Self – Powered), (45 to 65Hz) |
| Mounting Type | Din Rail |
| Size | 35 x 90mm |
| Certification | CE, MID |
