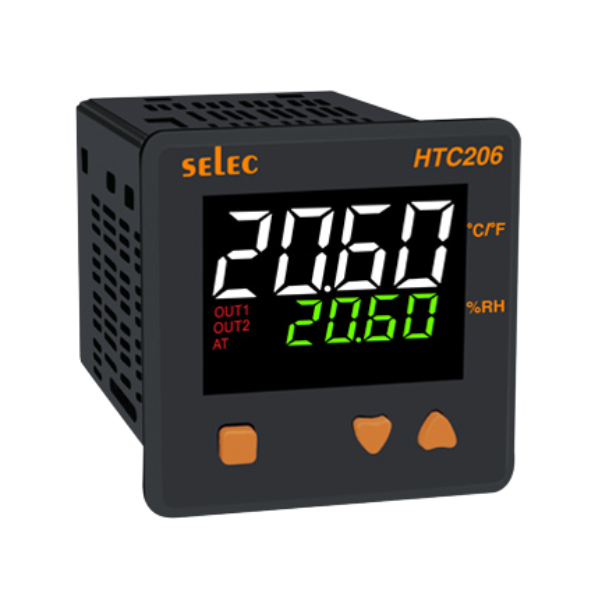

Selec 4 digit dual display Humidity + Temperature controller (HTC206)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 4 digit dual display with RH input
- RH sensor enclosed with unit
- ON-OFF control for humidity
- 10A SPDT Relay output
- 0% - 100% Humidity control range
- 4 digit LED display with RTD(PT100) input
- ON-OFF/PID control for temperature
- Auto tune / Self tune PID
- 10A SPDT/12V SSR Relay output
Brief Specifications
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4+4 digits |
| Type of Inputs | 5V RH (HS-A-100) sensor for Humidity, RTD(PT100) sensor for Temperature |
| Resolution | 0.1 / 1 for RH / RTD inputs |
| Accuracy | RTD: ±0.25% of span or 1° whichever is greater (20min of warm up time) Cold Junction Calibration accuracy for RTD input 0.1% of F.S ± 1° C Humidity: ±3% for RH 10% to 80%, ±4% for below 10% or above 80%. |
| Type of Output | Relay |
| Set Point | 2 |
| Control Output | For Humidity: ON-OFF For Temperature:ON-OFF / PID control |
| Feature | Load protection protocol, Low / High Alarm, Free RH sensor with unit |
| Supply Voltage | 90-270V AC/DC |
| Size | 72 x 72mm |
| Mounting Type | Panel Mount |
