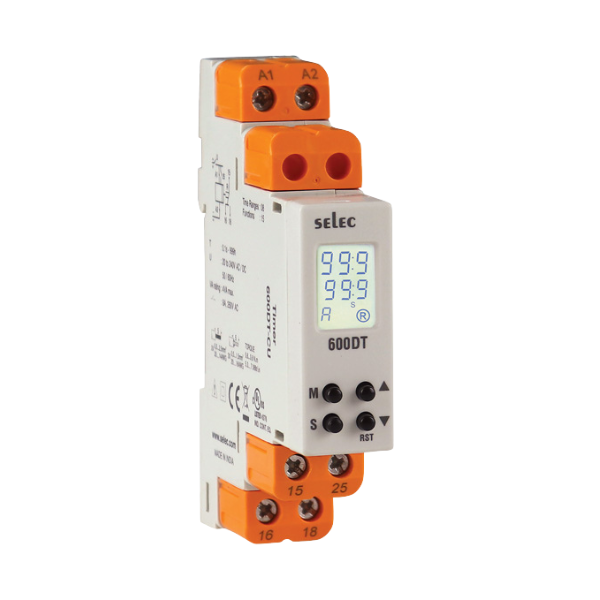

Selec 15 FUNCTIONS, WIDE TIME RANGE, UNIVERSAL POWER SUPPLY (600DT)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 15 Functions, 9 Time ranges
- Front key pad setting
- Universal supply voltage
- Slim, Space saving design
Brief Specifications
| Relay Contact | 1 C/O SPDT |
| Range | 9.99/99.9/999 Sec, 9.59 minsec, 99.9/999 min, 9.59 hr : min, 99.9/999 hr |
| Operating Modes | On Delay, Interval, Asymmetrical cyclic OFF first, Asymmetrical cyclic ON first, Cyclic equal OFF first, Cyclic equal ON first, Pulse output, Delay on break, Delay on make / break, Interval after break, Single shot, Retriggerable single shot, Latching relay, Delay on break with totalise, Interval with totalise |
| Resolution | 0.1 sec |
| Counting Direction | Down |
| Accuracy | Setting:± 0.1 Of Set Time or ± 50m sec (Whichever Is Greater) For Y contact operation: + 100 m sec, Repeat: ± 0.1% |
| Supply Voltage | 20 to 240V AC / DC |
| Size | 17.5mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE, UL |
