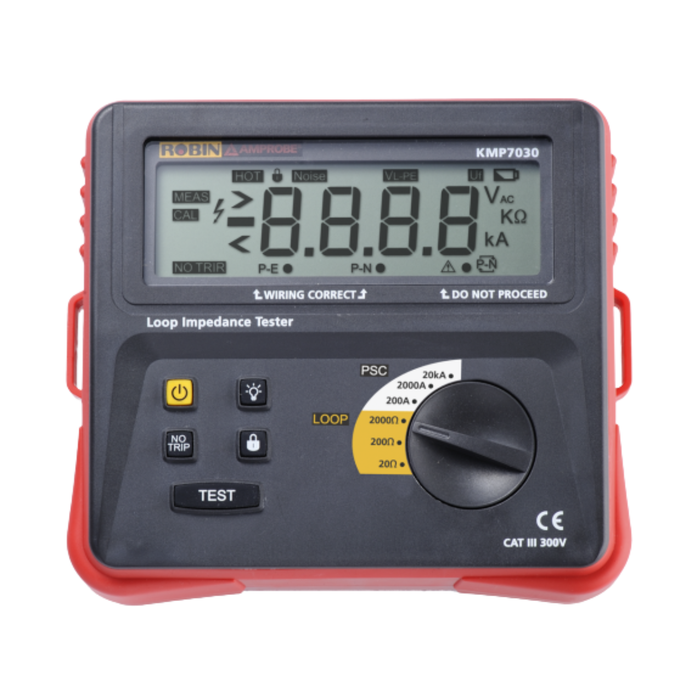

Amprobe KMP7030 Loop impedance tester
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Product Overview
Loop Impedance Tester according to BS7671 IEE 17th Edition regulations
Functions
- Non Trip Loop test
- Loop testing is a quick, convenient, and highly specific method of evaluating an electrical circuit for its ability to engage protective devices (circuit breakers, fuses, RCD’s)
- A ground loop determines the effectiveness of protective devices, therefore it is crucial to be able to measure it, in order to detect and correct problems.
Device information
- Fast testing
- Instant reading
- Loop measurement ranges: 20, 200 & 2000Ω
- PSC measurement up to 20kA
- Backlight display
- Low Battery Indication
- CAT III 300V
Device features
- Displays mains voltage before test
- Instant correct wiring status check
- Designed to allow testing to BS7671 IEE 17th Edition regulations, BS EN 61010-1 CAT III 300V, BS EN 61557-1, BS EN 61557-3, BS EN 61326-1 (EMC)
Includes:
1 Pc. Mains test cord
1 Pc. Test lead set with IEC connector
1 Pc. Test probe set
1 Pc. Alligator clip set
1 Pc. batteries (8 x AA)
1 Pc. user’s manual
1 Pc. strap and carrying case
