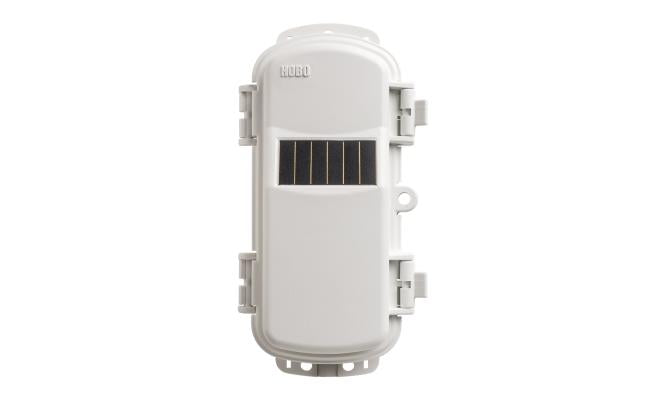

HOBOnet Repeater(Solar Powered)

Name: HOBOnet Repeater(Solar Powered)
Brand: Hydromatics Limited
Availability: InStock

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Overview

A solar-powered wireless repeater designed to work with the HOBOnet Wireless Sensor Network. Ideal for use when there's an obstruction between wireless sensors and the HOBO RX3000 or the HOBO MicroRX station, or for extending the transmission range of wireless sensors in the network.

Features

900 MHz wireless mesh self-healing technology
450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
Up to 50 wireless sensors or 336 data channels per HOBO RX station
Simple button-push to join the HOBOnet wireless network
Onboard memory to ensure no data loss
Powered by rechargeable AA batteries and built-in solar panel

Specifications

Operating Temperature Range

-25° to 60°C (-13° to 140°F) with rechargeable batteries

-40 to 70°C (-40 to 158°F) with lithium batteries

Radio Power

12.6 mW (+11 dBm) non-adjustable

Transmission Range

Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high

Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high

Wireless Data Standard

IEEE 802.15.4

Radio Operating Frequencies

RXMOD-RXW-900: 904-924 MHz

RXMOD-RXW-868: 866.5 MHz

RXMOD-RXW-922: 916-924 MHz

RXMOD-RXW-921: 921 MHz

Modulation Employed

OQPSK

Offset Quadrature Phase Shift Keying

Data Rate

Up to 250 kbps, non-adjustable

Duty Cycle

<1%

Maximum Number of Motes

Up to 50 wireless sensors or 336 data channels per one HOBO RX station

Logging Rate

1 minute to 18 hours

Number of Channels

1

Power Source

Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)

Dimensions

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

Cable length: 2 m (6.56 ft)

Weight

Mote: 159 g

5.62 oz

Materials

Mote: PCPBT, silicone rubber seal

Environmental Rating

Mote: IP67, NEMA 6
