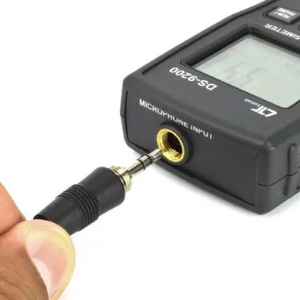

Lutron Noise Dosimeter DS-9200
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
SPECIFICATIONS
| Range | SPL (Sound Pressure Level) : 35 to 130 dB Dose (Test Noise Exposure) : 70 to 130 dB |
| Resolution | 0.1 dB |
| Accuracy (23 ± 5ºC) |
±3.5 dB (31.5 Hz)
±2.5 dB (63 Hz) ±2.0 dB (125 Hz) ±1.9 dB (250 Hz)
±1.9 dB (500 Hz) ±1.4 dB (1 KHz) ±2.6 dB (2 KHz)
±3.6 dB (4 KHz) ±5.6 dB (8 KHz) |
| Time weighting | Fast: 125 ms, Slow: 1 s |
| Frequency | 31.5 to 8000 Hz |
| Function selector (SPL, Dose) | Auto range: 35 to 130 dB Threshold Level (Thr) : 70 to 90 dB in 1 dB steps Criterion Level (Crit) : 80, 84, 85, 90 dB Exchange Rate: 3, 4, 5, 6 dB |
| Microphone type | Electric condenser microphone |
| Sampling time | 1 second |
| Standard | IEC 61672, Class 2 |
| Functions | dB (A & C frequency weighting), Time weighting (Fast, Slow), Data hold, Record max/ min, Auto power off |
| Interface | RS232, USB PC interface |
| Power requirement | Battery AAA x 3 |
| Dimensions/ Weight | 116 x 45 x 20 mm/ 250 g |
