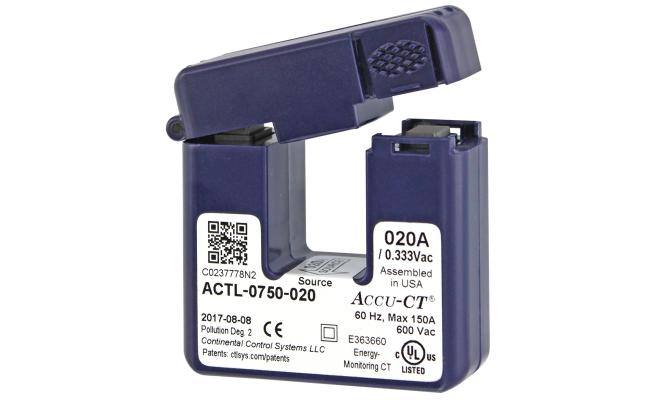

Hobo 20 Amp Accu-CT Split-Core Current Transformer 333mV Sensor 0.78”(20mm) Opening
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Overview
Features
- Unprecedented linearity
- Window opening 0.75 Inch
- The Accu-CT revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism
- Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
- IEEE C57.13 and IEC 60044-1 accuracy: over full temperature range and down to 1% of rated current
- Exceptionally low phase angle error: essential for accurate power and energy measurements
- Glove-friendly: easy to open and install with one hand while wearing safety gloves
- Approvals: UL recognized, CE mark, RoHS
Specifications
Accuracy: ±0.75% from 1% to 120% of rated primary current
Phase angle: ±0.5 degrees (30 minutes) from 1% to 120% of rated current
Accuracy standards: IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
Primary rating: 5 to 250 Amps, 600 Vac, 60 Hz nominal
Output: 333.33 mVac at rated current
Operating temperature: -30°C to 55°C
Safe: integral burden resistor, no shorting block needed, unlessotherwise noted
Standard lead length: 8 ft (2.4 m), 20 AWG
UL recognized, CE mark, RoHS
Assembled in USA: qualified under Buy American provision in ARRA of 2009
Width: 2.38 inches
Height: 2.40 inches
Thickness: 0.90 inches
Window: 0.78 inches
