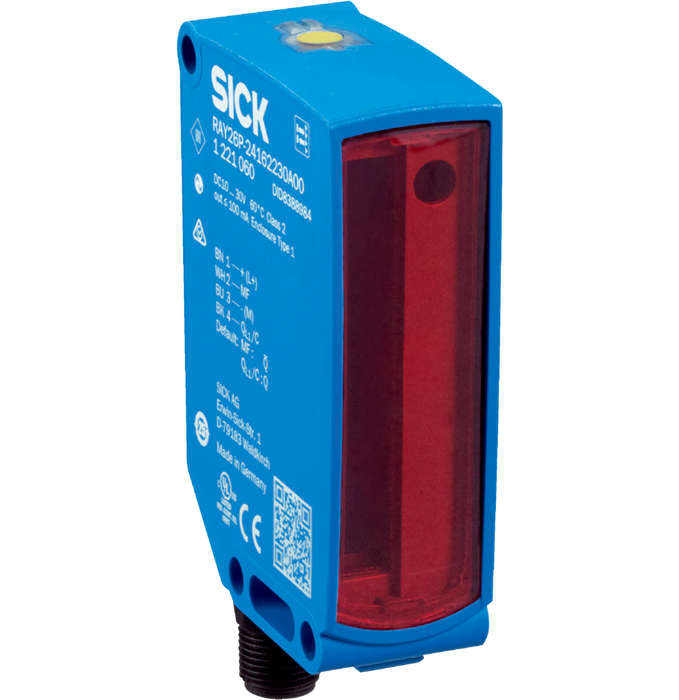

Sick Photoelectric sensors: RAY26 Reflex Array RAY26P-34862530A00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Features
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 5 mm, position-independent detection within the light array |
| Detection height | 55 mm |
| Sensing range max. | 0 m ... 3 m 1) 2) |
| Distance of the sensor to reflector | ≥ 0 m |
| Conveyor belt suppression | Manual |
| Type of light | Visible red light |
| Light source | PinPoint LED 3) |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2 configuration | External Input (test), Teach-in, switching signal |
| AutoAdapt | ✔ |
| Special applications | Detecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects |
Mechanics/electronics
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp |
| Current consumption |
25 mA 2) 40 mA 3) |
| Switching output | PNP 4) |
| Output: QL1 / C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2 / white (MF): PNP normally open (dark switching), Pin 4 / black (QL1 / C): PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS – 2.5 V / 0 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 3 ms 5) |
| Switching frequency | 170 Hz 6) |
| Connection type | Cable with M12 male connector, 4-pin, 270 mm 7) |
| Cable material | Plastic, PVC |
| Circuit protection |
A 8) B 9) C 10) D 11) |
| Protection class | III |
| Weight | 100 g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating |
IP66 IP67 |
| Ambient operating temperature | –40 °C ... +60 °C 12) 13) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 709 years |
| DCavg | 0 % |
Communication interface
| Communication interface | IO-Link V1.1 |
| Communication Interface detail | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure |
Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = empty |
| VendorID | 26 |
| DeviceID HEX | 0x800218 |
| DeviceID DEC | 8389144 |
Smart Task
| Smart Task name | Base logics | ||||||
| Logic function |
Direct AND OR Window Hysteresis |
||||||
| Timer function |
Deactivated Switch-on delay Off delay ON and OFF delay Impulse (one shot) |
||||||
| Inverter | Yes | ||||||
| Switching frequency |
SIO Direct: 170 Hz 1) SIO Logic: 170 Hz 2) IOL: 170 Hz 3) |
||||||
| Response time |
SIO Direct: 3 ms 1) SIO Logic: 3 ms 2) IOL: 3 ms 3) |
||||||
| Repeatability |
SIO Direct: 1,5 ms 1) SIO Logic: 1,5 ms 2) IOL: 1,5 ms 3) |
||||||
|
|||||||
Diagnosis
| Device status | Yes |
| Quality of teach | Yes |
| Quality of run | Yes, Contamination display |
