Hobo Self-Describing DC Voltage Input Cable
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Overview

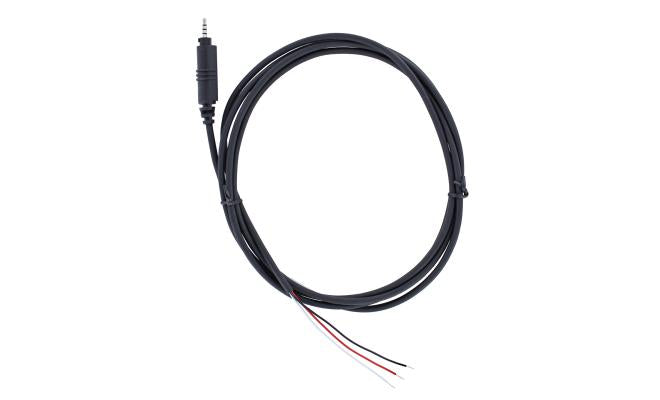

For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this DC voltage input cable offers integrated strain relief to keep it connected to the logger, and it features Self-Describing technology to automatically communicate configuration information to the logger.
Features
- Self-Describing technology for quick, easy setup

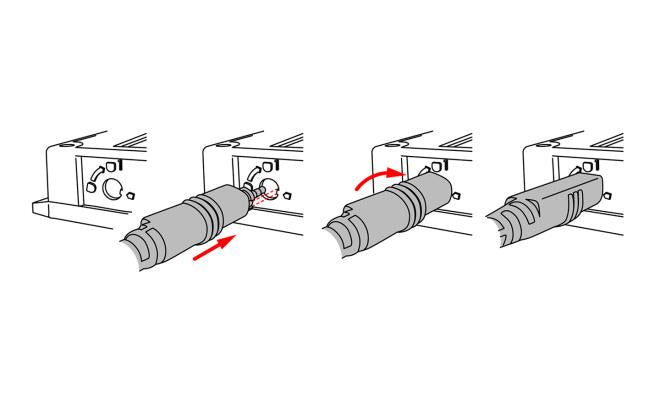

- Locking jack to ensure cable is connected and stays connected
- Measurement range:
- 0 to 2.5 V (w/ SD-VOLT-2.5)
- 0 to 5 V (w/ SD-VOLT-05)
- 0 to 10 V (w/ SD-VOLT-10)
- 0 to 24 V (w/ SD-VOLT-24)
- Accuracy:
- ±0.1 mV ±0.1% of reading (w/ SD-VOLT-2.5)
- ±0.2 mV ±0.3% of reading (w/ SD-VOLT-05)
- ±0.4 mV ±0.3% of reading (w/ SD-VOLT-10)
- ±1.0 mV ±0.3% of reading (w/ SD-VOLT-24)
- Cable length: 1.8 m (6 ft)
Specifications
-
SD-VOLT-2.5 SD-VOLT-05 SD-VOLT-10 SD-VOLT-24 Maximum Input 0 to 2.5 VDC 0 to 5 VDC 0 to 10 VDC 0 to 24 VDC Accuracy ±0.1 mV ±0.1% of reading ±0.2 mV ±0.3% of reading ±0.4 mV ±0.3% of reading ±1.0 mV ±0.3% of reading Impedance > 1 MΩ 20 KΩ 20 KΩ 48 KΩ Resolution 0.002% of full scale Cable Length 1.83 m (6 ft)
