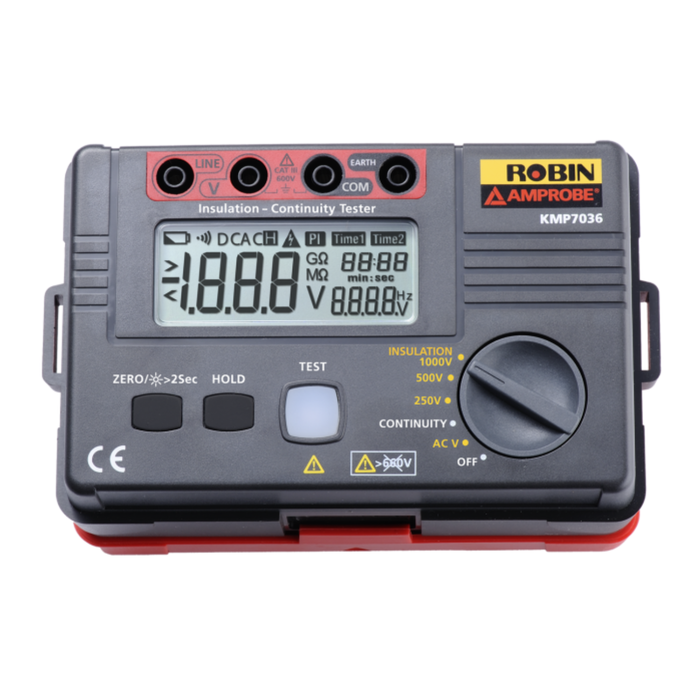

Amprobe KMP7036 Insulation Tester, 250V Min, 1000V Max, 1.99GΩ Max, CAT III 600V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Product Overview
Insulation-Continuity Tester according BS7671 IEE 17th Edition regulations
Functions
- Tests insulation of wires, cables, transformers and electrical motors
Device information
- Selectable test voltages 250V, 500V and 1000V
- Test button hold to perform the Dielectric Absorption Ratio Test
- Continuity test @ 200mA short-circuit
- Built in voltmeter and red light warning for live circuit indication
- Automatic discharge of test object after completion of measurement
- Test lead resistance zero facility
- Safety CAT III 600V Device features
- Designed to diagnose the breakdown of the insulation in various parts of the electrical system such as wires, transformers and motors
- Three testing voltages covering wide range of commercial and residential applications
- The quality of insulation is critical to assure proper, uninterrupted and safe functioning of electrical circuits
- Designed to allow testing to BS7671 IEE 17th Edition regulations BS EN 61010-1 CAT III 600V, BS EN 61557-1 / -2 / -4 / -10, BS EN 61326-1 (EMC)
Includes:
2 Pc. Test leads
2 Pc. Test probes
2 Pc. alligator clips
1 Pc. batteries (6 x AA)
1 Pc. user’s manual
1 Pc. carrying case and strap
