HOBO USB Micro Station Data Logger
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Overview
Rugged and compact, the redesigned HOBO USB Micro Station is a weatherproof data logger for multi-channel monitoring of microclimates. This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick. The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and integrated mounting tabs for easy installation.
Looking for a cellular option? The MicroRX Station offers integrated solar panel or battery-power for affordable remote data offload via 4G cellular.
Interested in water level and flow monitoring? The MicroRX Water Level Station combines the MicroRX Station with Onset's own water level sensor and pre-programmed water flow formulas.
Features
- Compact size for easy deployment
- Weatherproof IP66 enclosure for harsh environments
- Direct USB offload--no need for an adapter cable

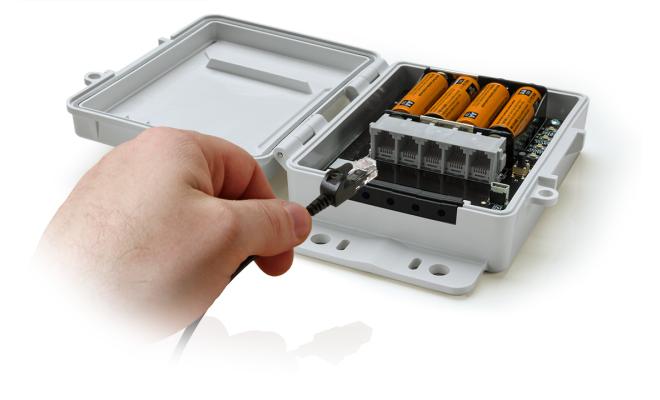

- Includes five Smart Sensor inputs

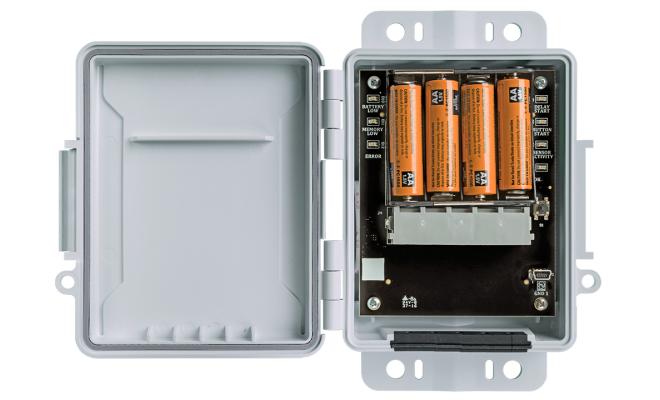

- Hinged door and integrated mounting tabs
- Runs for up to a year on four standard AA batteries
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Specifications
Data Logger
-
-20° to 50°C with alkaline batteries-4° to 122°F with alkaline batteries-40 to 70°C with lithium batteries-40 to 158°F with lithium batteries
-
5
-
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
-
100 m maximum328 ft maximum
-
1 second to 18 hours
-
Immediate, at interval, push button, or delayed start
-
Stop when full or wrap when full
-
512 KB nonvolatile flash data storage
-
0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
-
Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°CFour AA 1.5 V alkaline batteries for operating conditions of -4° to 122°FFour AA 1.5 V lithium batteries for operating conditions of -40 to 70°CFour AA 1.5 V lithium batteries for operating conditions of -40 to 158°F
-
1 year, typical use (up to five sensors with 1 minute or greater logging interval)
-
USB 2.0 interface
-
4 minutes
-
Hinged door secured by one latch with eyelet for use with user-supplied padlock
-
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gasket: Silicone foam; Cable channel: EPDM rubber
-
17.04 x 11.94 x 4.47 cm see diagrams below Padlock hole diameter: 0.58 cm6.71 x 4.70 x 1.76 in. see diagrams below Padlock hole diameter: 0.23 in.
-
414 g14.6 oz
-
Weatherproof enclosure, NEMA 4X and IP66
