Overview

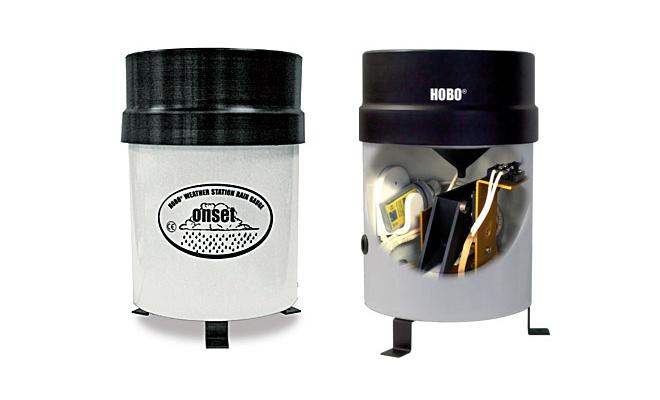

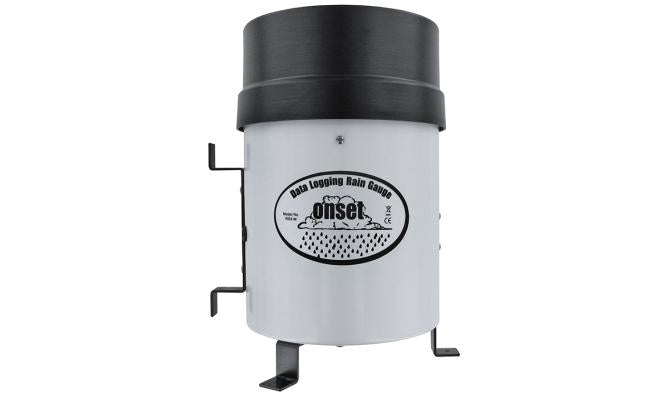

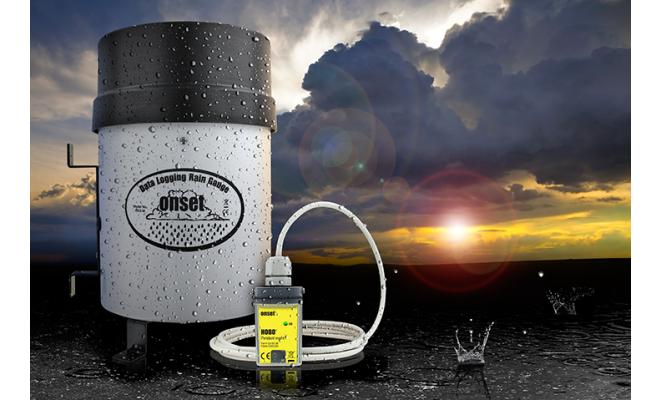

A battery-powered rainfall data collection and recording system that includes a HOBO Pendant Event data logger integrated into a tipping-bucket rain gauge. Automatically records up to 3200 mm (160 inches) of rainfall data at rates up to 12.7 cm (5 in) per hour, which can be used to determine rainfall rates, times, and duration. Also records temperature when used with an optional solar radiation shield (RS1 Solar Radiation Shield or M-RSA). A base station or shuttle is required.
Features
- High quality tipping-bucket rain gauge includes a HOBO Pendant Event data logger. Base station or shuttle is required
- Time and date stamp is stored for each tip - provides detail needed to determine rainfall rates and duration
- Reliable, field-proven rain gauge
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing, and analysis
- Also records temperature when used with an optional solar radiation shield
Specifications
Rain Gauge
Maximum rainfall rate
-
12.7 cm (5 in.) per hour
Calibration accuracy
-
±1.0%up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M
Resolution
-
0.01 in. (RG3) or 0.2 mm (RG3-M)
Calibration
-
Requires annual calibration: can be field calibrated or returned to the factory for re-calibration
Operating temperature range
-
0° to +50°C+32° to +122°F
Storage temperature range
-
-20° to +70°C-4° to +158°F
Environmental rating
-
Weatherproof
Housing
-
15.24cm (6-in.) aluminum bucket

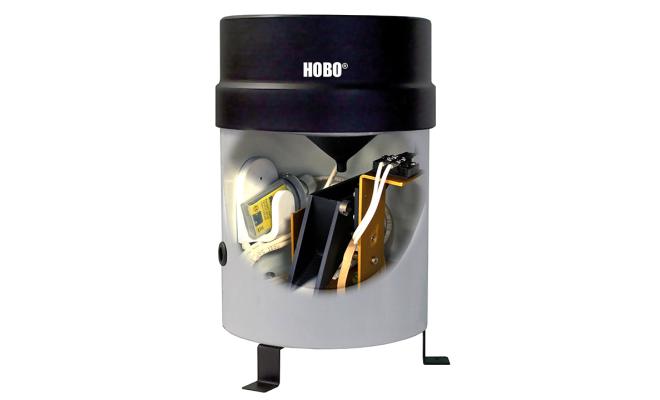

Tipping bucket mechanism
-
Stainless steel shaft with brass bearings
Dimensions
-
25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice
Weight
-
1.2 Kg2.5 lbs
Part numbers
-
RG3 (0.01 in. per tip), RG3-M (0.2 mm per tip)
Logger
Time stamp resolution
-
1.0 second
Time accuracy
-
± 1 minute per month at 25°C (77°F), see Plot B on page 10.
Operating range
-
-20° to 70°C-4° to 158°F
Environmental rating (for logger used outside of rain gauge)
-
Tested to NEMA 6 and IP67; suitable for deployment outdoors
NIST traceable certification
-
Available for temperature only at additional charge; temperature range -20° to 70°C-4° to 158°F
Battery
-
CR-2032 3V lithium battery; 1 year typical use
Memory
-
64K bytes - 16K to 23K tips when recording rain only; 25K to 30K data points when recording rain and temperature
Materials
-
Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation
Temperature Measurement
Measurement range
-
-20° to 70°C-4° to 158°F
Accuracy
-
± 0.47°C at 25°C (± 0.85°F at 77°F), A solar radiation shield is required for accurate temperature measurements in sunlight.
Resolution
-
0.10°C at 25°C0.18°F at 77°F
Drift
-
Less than 0.1°C/year0.2°F/year
Response time
-
Airflow of 1 m/s (2.2 mph): 10 minutes, typical to 90%
