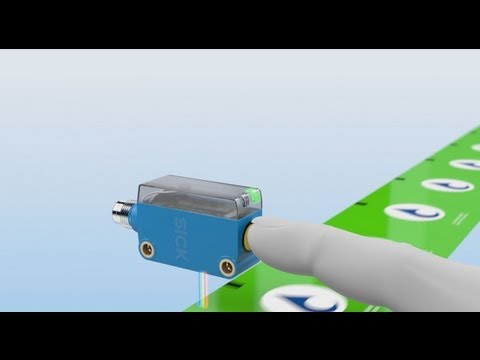

Sick Contrast sensors: KTM-MB31112P
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Features
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | ≤ 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Small |
| Light source | LED, white 1) |
| Light emission | Long side of housing |
| Light spot size | Ø 2 mm (12.5 mm) |
| Light spot direction | Round |
| Receiving filters | None |
| Adjustment | Potentiometer, screw driver |
Electronics
| Supply voltage | 12 V DC ... 24 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | < 50 mA 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Jitter | 25 µs |
| Switching output | PNP, NPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V, NPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 50 mA 6) |
| Time delay | None |
| Protection class | III |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
Mechanics
| Housing material | ABS |
| Display |
LED indicator green: power on LED indicator, yellow: Status switching output Q |
| Optics material | PMMA |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
| Weight | 20 g |
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Connection type/pinouts
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m | ||||||||||
|
|||||||||||
