Check Valves

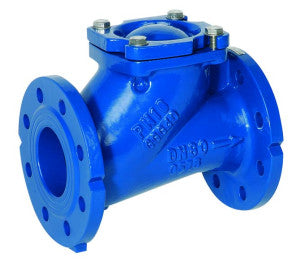

Genebre Check valve with ball - flanges DIN PN 16 4"
Body and disk: cast iron GGG-40. Ball: with NBR coated. Max. pressure: 16 BAR. Temp.: -10ºC +80ºC. Dimensions between sides DIN 3202 F6.
Genebre Check valve with ball - flanges DIN PN 16 3"
Body and disk: cast iron GGG-40. Ball: with NBR coated. Max. pressure: 16 BAR. Temp.: -10ºC +80ºC. Dimensions between sides DIN 3202 F6.

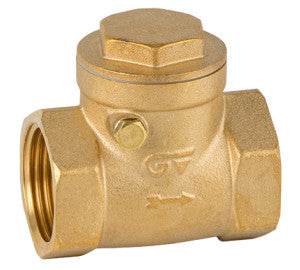

Genebre Metal swing check valve 3"
PN 12/10/8. Metal sealing. Body brass UNE-EN 12165. Gas threaded ends (BSP) F-F - ISO 228/1. Max. temp. 200ºC. Horizontal assembling.<br><...
View full details
Genebre Metal swing check valve 2"
PN 12/10/8. Metal sealing. Body brass UNE-EN 12165. Gas threaded ends (BSP) F-F - ISO 228/1. Max. temp. 200ºC. Horizontal assembling.<br><...
View full details

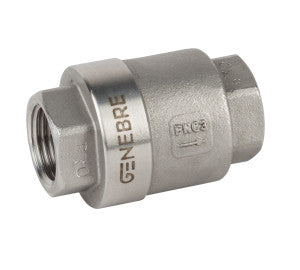

Genebre Disk check valve PN 63 4"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 3"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 2"1/2
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 2"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 1 1/2"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 1 1/4"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 1"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 3/4"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 1/2"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 3/8"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.
Genebre Disk check valve PN 63 1/4"
Const. stainless steel CF8M (316) investment casting. Gas threaded ends ISO 7-1 (EN 10226-1). Disk and spring: AISI 316. PN 63, Temp: -20ºC +240ºC.

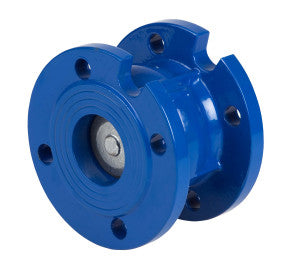

Genebre Disk check valve with flanges DIN PN 16 8"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.
Genebre Disk check valve with flanges DIN PN 16 6"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.
Genebre Disk check valve with flanges DIN PN 16 5"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.
Genebre Disk check valve with flanges DIN PN 16 4"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.
Genebre Disk check valve with flanges DIN PN 16 3"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.
Genebre Disk check valve with flanges DIN PN 16 2"
Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.

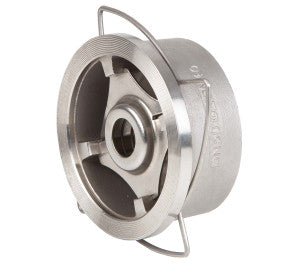

Genebre Wafer type DISK CHECK VALVE WAFER TYPE DN-150
Constr.: AISI 316. Disk and spring: AISI 316. Mounting between flanges PN 10/40. ANSI 150 lbs. Length: DIN 3202 K4.
Genebre Wafer type DISK CHECK VALVE WAFER TYPE DN-100 4"
Constr.: AISI 316. Disk and spring: AISI 316. Mounting between flanges PN 10/40. ANSI 150 lbs. Length: DIN 3202 K4.
Genebre Wafer type DISK CHECK VALVE WAFER TYPE DN-80 3"
Constr.: AISI 316. Disk and spring: AISI 316. Mounting between flanges PN 10/40. ANSI 150 lbs. Length: DIN 3202 K4.
