Control Techniques C200-044-00170
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

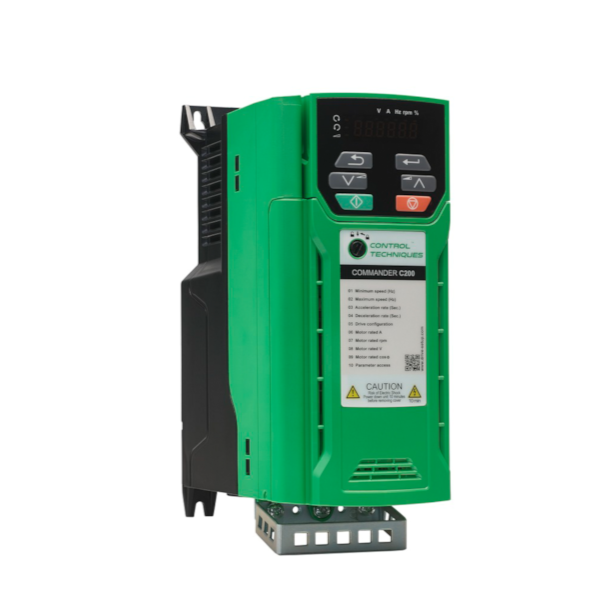

Control Techniques Commander C200 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C200 is equipped with the latest energy-saving features as well as built-in PID and onboard PLC for increased control at a lower cost.
Specifications
- Model Number : C200-044-00170
- Power Rating : 7.5kW, 10HP
- Output Current : 17Amps
- Supply Voltage : 380/480 VAC, three phase, +/- 10%
- Frame Size : 4
- Frame Dimensions : h. 277mm x w.90mm x d.175mm
- Manufacturer : Control Techniques
- Ambient : -20-40 C
- Overload : 150% for 60 seconds
- IP Class : IP20
- Analogue Inputs : 3
- Digital Inputs : 5
- Relay Outputs : 1
- Remote Keypad Available : Yes
